Describe
RLCP1236 is an Over-Voltage-Protection (OVP) IC with an ultra-low Rdson high current high voltage
MOSEFT. It can sustain voltage as high as 36V DC,protecting downstream devices from high voltage
surges.When input voltage of RLCP1236 exceed the OVP trip level, it responses quickly and shuts off the
MOSFET. The OVP trip level can be externally adjusted with resistors at OVLO pin. It also has an over
temperature protection feature that turns off the MOSFET.
Supply voltage range from 2.7V to 20V
36V VBUS voltage tolerance
Maximum DC switching current up to 3.5A
Adjustable over voltage protection (OVP)
6.05V OVP trip level when OVLO=0V
Fast turnoff transient response
Over temperature protection (OTP)
On chip slew rate control for inrush current
On-The-Go (OTG) functionality
ESD：
Human Body Model (HBM) > 2kV
Charged Device Model (CDM) >750V
Machine Model (MM) > 200V
IEC61000-4-2 on VBUS pin, Air discharge >15kV
IEC61000-4-2 on VBUS pin, contact discharge > 8kV

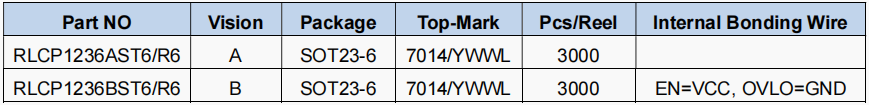

Mobile Phone
Mobile handsets
Portable device
Notebooks and Tablets
