型号
|
|
描述
|
开关类型
|
通道数
|
信号类型
|
输入电压（V）
|
导通内阻TPY@4.5V（Ω）
|
导通电容 (PF)
|
-3dB带宽 (MHz)
|
功耗 （uA）
|
封装
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

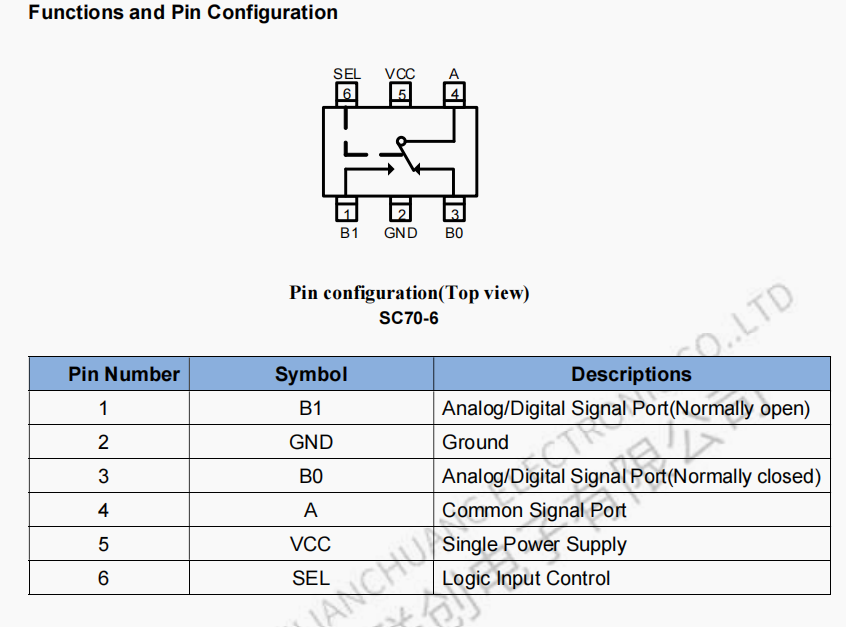

RLCS3157 | SPDT | 1 | DATA | 1.5~5.5 | 1.5 | 5 | 700 | 1 | SC70-6(SOT363) | |||
|

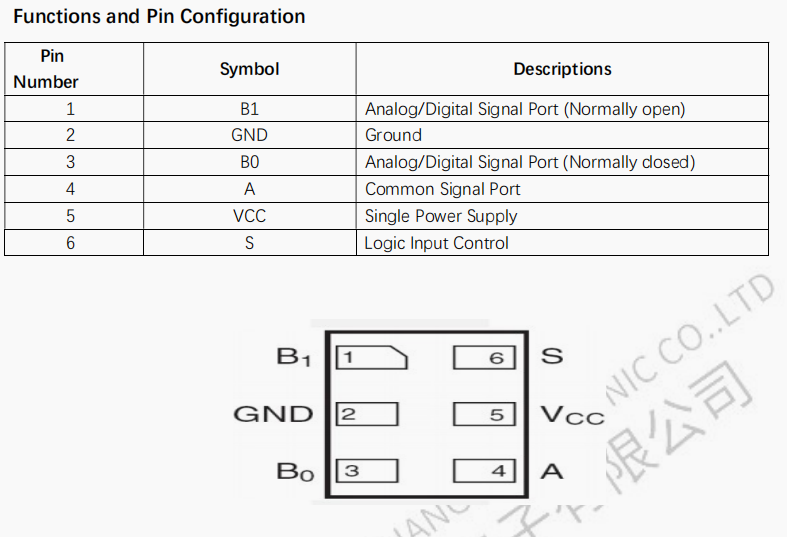

RLCS3257 | SPDT | 1 | DATA | 1.5～5.5 | 1.5 | 5 | 700 | 1 | DFN1x1-6L | |||
|

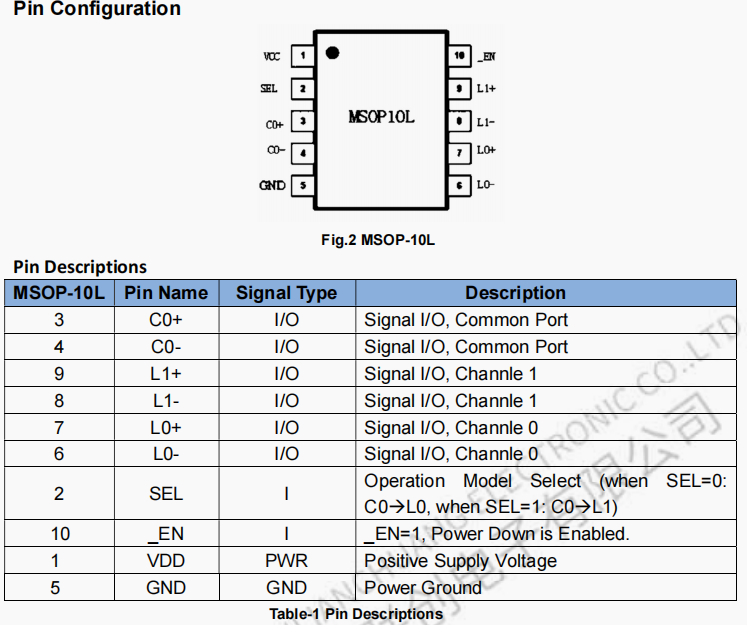

RLCS4000M | Dual SPDT | 2 | USB2.0 | 2.5～5.5 | 10 | 4 | 1000 | 33 | 4.9 | C0+/- 30 | MSOP-10L | |
|
RLCS3357 | SPDT | 1 | DATA | 1.5～5.5 | 1.5 | 5 | 700 | 1 | DFN1x1-6L | |||
|

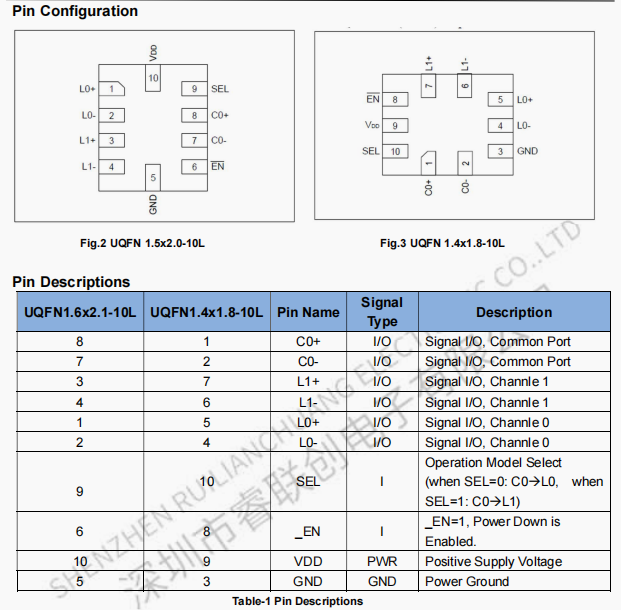

RLCS4000Q | Dual SPDT | 2 | USB2.0 | 2.5～5.5 | 10 | 4 | 1100 | 33 | 4.9 | C0+/- 30 | QFN14x18-10L QFN15x20-10L | |
|

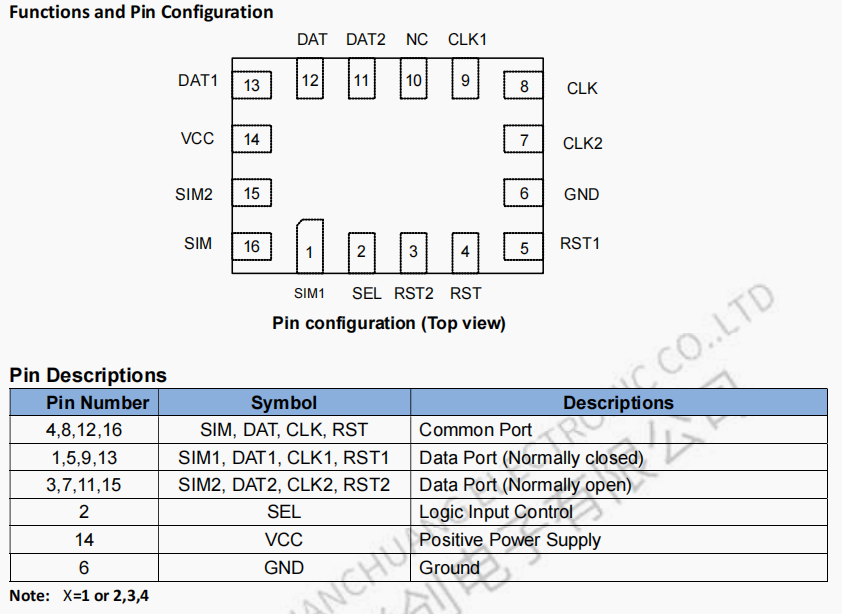

RLCS1567 | Quad SPDT | 4 | USB2.0/SIM | 1.5～5.5 | 1.5 | 5 | 700 | 1 | QFN1.8x2.6-16L | |||
|

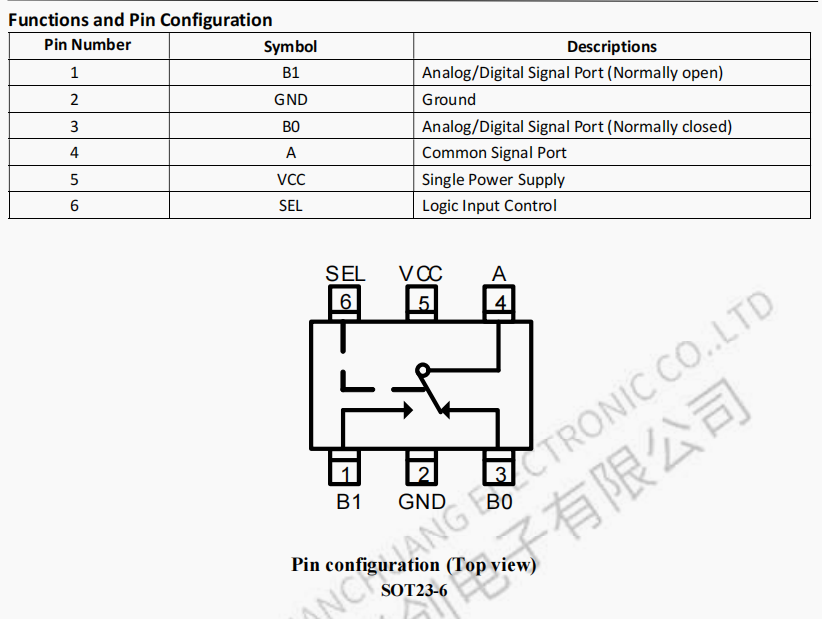

RLCS3457 | SPDT | 1 | DATA | 1.5～5.5 | 1.5 | 5 | 700 | 1 | SOT23-6(SC74) | |||
|
RLCS6743 | Dual SPDT | 2 | USB2.0 | 2.5～5.5 | 10 | 4 | 1000 | 33 | 4.9 | D+/- 30 | WLCSP1.2x1.6-12 | |
|
|
RLCS4899 | Quad SPDT | 4 | USB2.0/SIM | 1.5～5.5 | 1.5 | 5 | 700 | 1 | QFN1.8x2.6-16L | |||
|
RLCS2750 | Dual SPDT | 2 | DATA | 1.5～5.5 | 1.5 | 5 | 850 | 1 | QFN 1.4 x 1.8-10L | |||
|

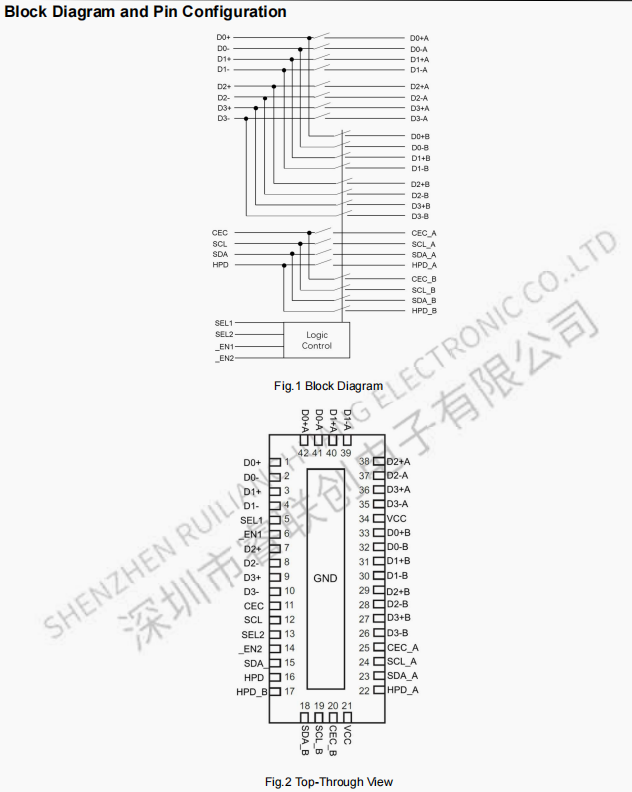

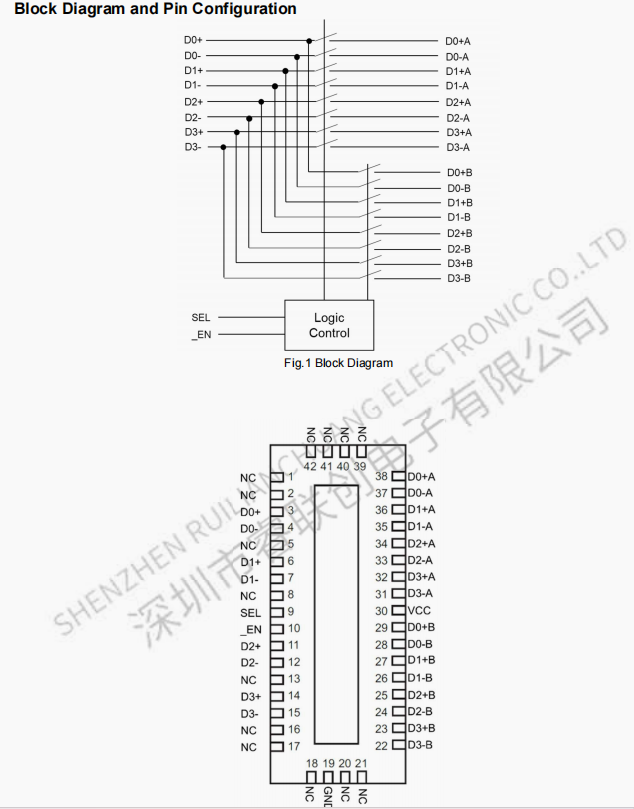

RLCS412Q | Port:16in 8out | 8 | HDMI2.0 | Max：5.5 | PortA: 6.5 PortB: 8.2 | / | 5700 | 100 | QFN9×3.5-42L | |||
|

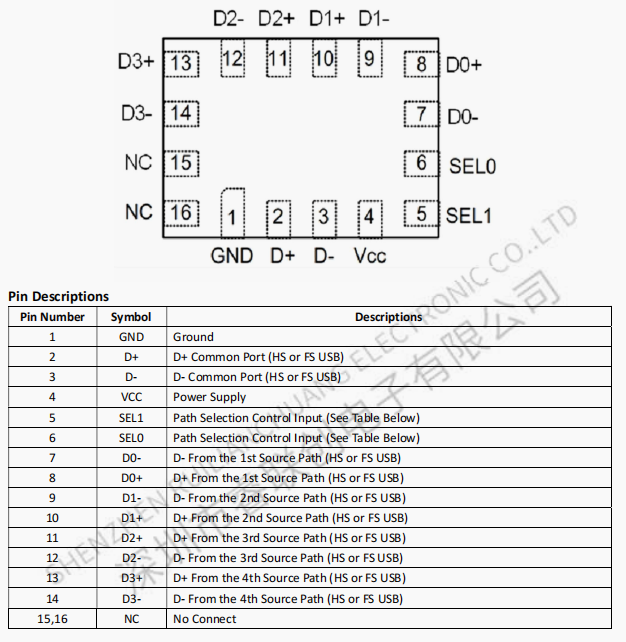

RLCS4735 | Dual SP4T | 2 | USB2.0 | 2.5～5.5 | 3.3 | 5 | 800 | 1 | / | / | QFN1.8x2.6-16L | |
|

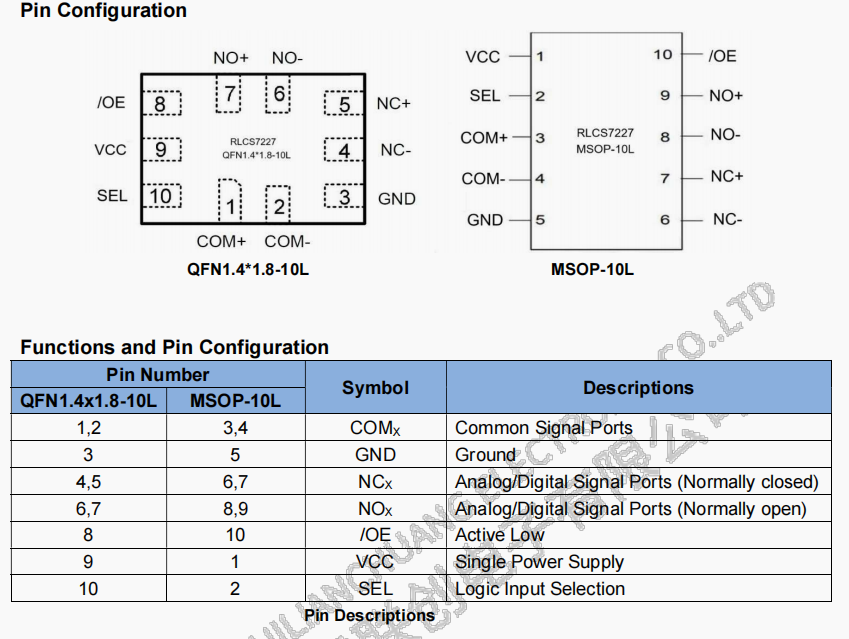

RLCS7227 | Dual SPDT | 2 | USB2.0 | 1.5～5.5 | 1.5 | 7 | 800 | 1 | UQFN1.4x1.8-10L MSOP-10L | |||
|

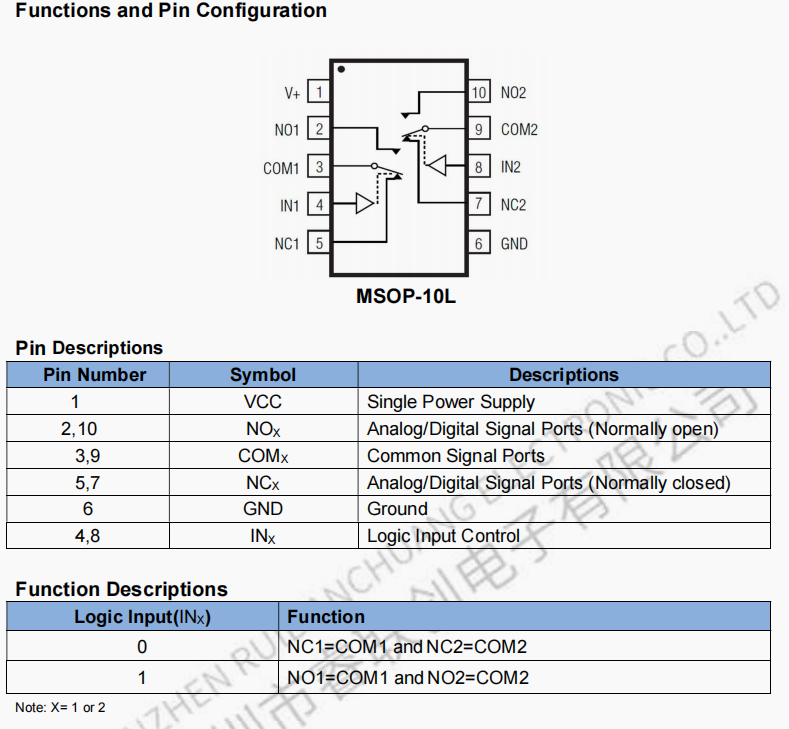

RLCS4717 | Dual SPDT | 2 | DATA | 1.5～5.5 | 1.5 | 5 | 850 | 1 | MSOP -10L | |||
|
RLCS6580 | SPDT 2:1 | 2 | Audio | 3.3～4.5 | 0.2 | 30 | 50 | 190 | QFN 1.8 x2.6-16 | |||
|

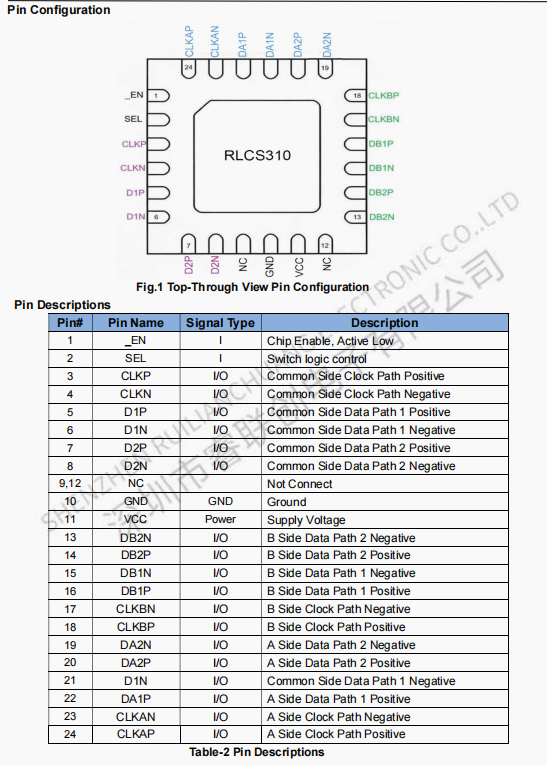

RLCS310 | SPDT 2:1 | 6 | MIPI | 1.5～5.0 | 6.7 | 1.5 | 5100 | 28 | QFN 4 x4-24L | |||
|
RLCS416 | Port:16in 8out Ctrl: 8in 4out | 8 | HDMI2.0 | Max：5.5 | PortA: 6.5 PortB: 8.2 | / | 5700 | 100 | QFN 9×3.5-42L | |||
|
RLCS3340 | Quad SPDT | 4 | USB3.0 | 1.5～5.5 | 6.7 | 1.5 | 5100 | 28 | QFN2 x 3-18L QFN3*3-16L | |||
|

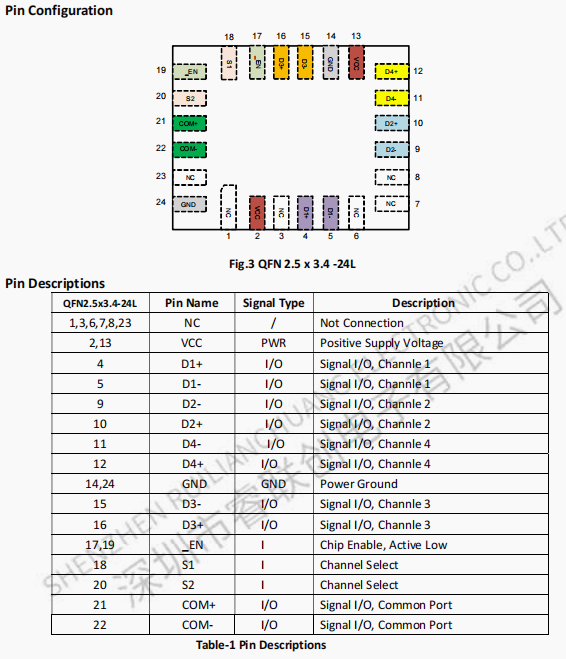

RLCS421 | Dual SP4T | 2 | USB2.0 | 2.5～5.5 | 18 | 4 | 1000 | 70 | / | COM+/- 30 | QFN2.5 x 3.4-24L | |
|

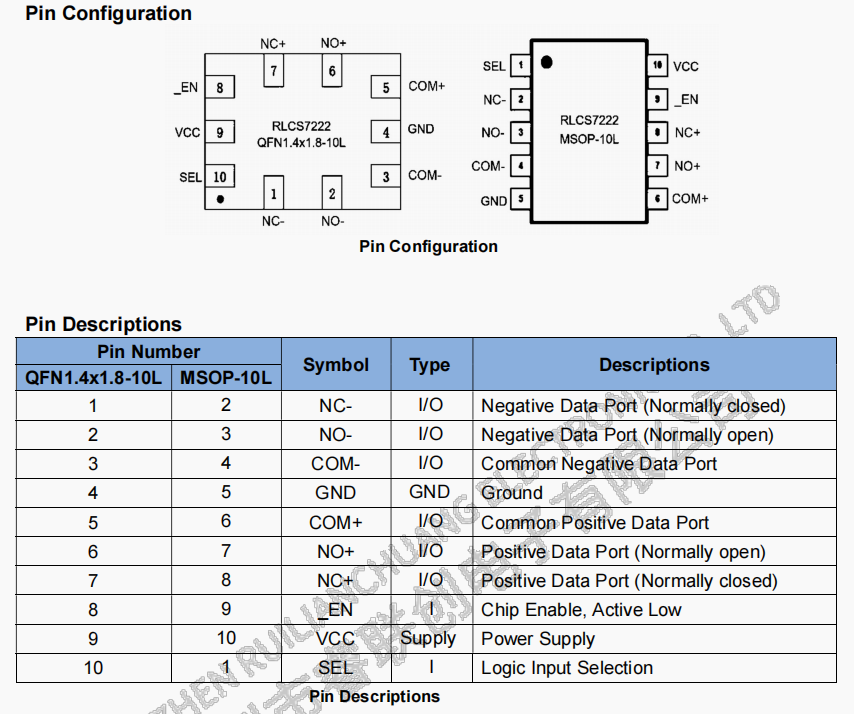

RLCS7222 | Dual SPDT | 2 | USB2.0 | 1.5～5.5 | 1.5 | 7 | 800 | 1 | UQFN1.4x1.8-10L MSOP-10L |
